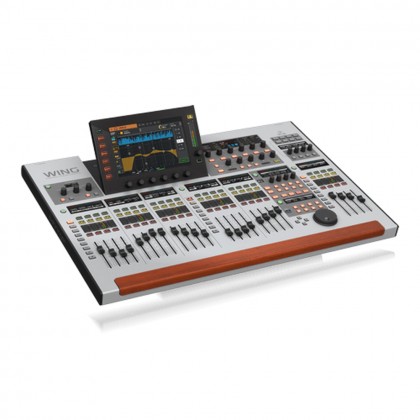

Behringer Wing 48-Channel, 28-Bus Full Stereo Digital Mixing Console with 24-Fader Control Surface and 10\ Touch Screen" (WING)
Price RM16,880.00
Product SKU WING
Brand Behringer
Availability In Stock
  • 8 award-winning Midas PRO mic preamps and 8 Midas PRO outputs onboard

  • 24 motorized 100 mm faders in 3 separate, fully configurable sections

  • "Plug and play" remote I/O connectivity for up to 144 input and output signals over 3 AES50 ports featuring Klark Teknik's SuperMAC technology for ultra-low jitter and latency

  • Large main display with capacitive touch screen and adjustable display swivel

  • Unique touch-sensitive channel editing section with 11 rotary controls and dedicated color TFT for staying on top of all channel properties

  • Optional module for 64x64 channels of audio over Ethernet supporting WAVES SoundGrid Technology* or Dante/AES67 Technology*

  • 48 x 48 channel USB 2.0 audio interface onboard with DAW remote control emulating HUI* and Mackie Control*

  • Dual-SD card live recorder/player with up to 64 tracks and markers for identifying song positions

  • Additional 4-channel control section with rotary controls, buttons and parameter display for permanent access to mains, matrices or "money-channels"

  • Premium FX rack with 8 true-stereo processors and world-class TC algorithms, Lexicon*, Quantec* and EMT* emulations

  • Standard FX rack with 8 true-stereo processors for a wide array of modulation, EQ, dynamics etc. also allows blending outboard effects to the mix

  • 5 variable plug-in processing slots for all 40 stereo input channels, featuring the most iconic vintage analog equalizers and compressors, plus insert FX slot and 4-band parametric EQ for all 8 stereo aux channels

  • Custom Controls offering 16 latching or momentary buttons and 4 rotary controls, easily being configured for preferred functions

  • 4 main, 8 matrix and 16 aux stereo buses, featuring dual inserts, 8-band parametric EQ's, stereo imager and full dynamics processing

  • 2 Ethernet ports with integrated switch for networked remote control

  • Built-in expansion port for optional audio interface cards or digital networking bridges, MADI* and ADAT/WC

  • StageConnect 32-channel low-latency interface for personal monitoring or analog I/O boxes, AES/EBU stereo digital in- and outputs on balanced XLR, 8x8 balanced TRS auxiliary line in- and outputs, 2 TRS phones connectors, MIDI I/O and 4 GPIO ports

The Personal Mixing Console

The WING control surface utilizes a large capacitive touchscreen interface with touch-sensitive rotary controls for a new ease of operation. Three separate fader sections and a Custom Controls section can be tailored easily and intuitively to meet your personal requirements. No matter if you need a specific bus send fader next to the corresponding channel fader, or a dedicated “money” channel always at your fingertip, or even sharing the surface with two engineers - WING can be configured to elevate your production to a new level. You can even replace and customize the massive wooden armrest with something funkier if you like. The technical drawing can be found in the Downloads section of the product page.



Input/Output Characteristics
Frequency response @ 48 kHz sample rate, 0 to -1 dB (any gain setting)

10 Hz - 20 kHz

Dynamic range, analog in to analog out (typical), XLR / aux

111 dB* / 108 dB*

A/D dynamic range, preamplifier and converter (typical), XLR / aux

112 dB* / 110 dB*

D/A dynamic range, converter and output (typical), XLR / aux

118 dB* / 112 dB*

Crosstalk rejection @ 1 kHz, adjacent channels

100 dB

Output level, XLR connectors (nominal / maximum)

+4 dBu / +21 dBu

Output impedance, XLR connectors (unbalanced / balanced)

75 Ω / 75 Ω

Input impedance , TRS connectors (unbalanced / balanced)

20 kΩ / 40 kΩ

Non-clip maximum input level, TRS connectors

+16 dBu

Aux output level, TRS (nominal / maximum)

+4 dBu / +16 dBu

Aux output impedance, TRS (unbalanced / balanced)

150 Ω / 300 Ω

Phones output impedance / maximum output level

500 mW @ 75 Ω / +18 dBu

Residual noise level, XLR out 1-16 connectors, unity gain

-97 dBu*

Residual noise level, aux and monitor TRS out connectors

-95 dBu*

Main screen

10.1" TFT LCD, 1280 x 800 px, capacitive touch

Main screen swivel, continuous adjustment

15°- 60°

4-channel group LCD screen with RGB color strip per channel

320 x 48 monochrome

Channel editing screen

2.4" TFT LCD, 320 x 240 px

Main stereo meter

18 segment (-60 dB to clip)

100 mm motor faders

12 + 8 + 4

Touch-sensitive rotary controls

3 + 7 + 11 + 4 + 4

Custom controls
Fully assignable rotary controls


Fully assignable backlit buttons

8 + 8

Variable rotary controls / buttons

4 / 4

Switch-mode power supply

Auto-ranging 100-240 VAC (50/60 Hz)

Power consumption

130 W

Standard operating temperatur range

5°C – 40°C (41°F – 104°F)

Dimensions (HxWxD)

201 x 870 x 575 mm (7.9 x 34.3 x 22.6")


24 kg (52.8 lbs
